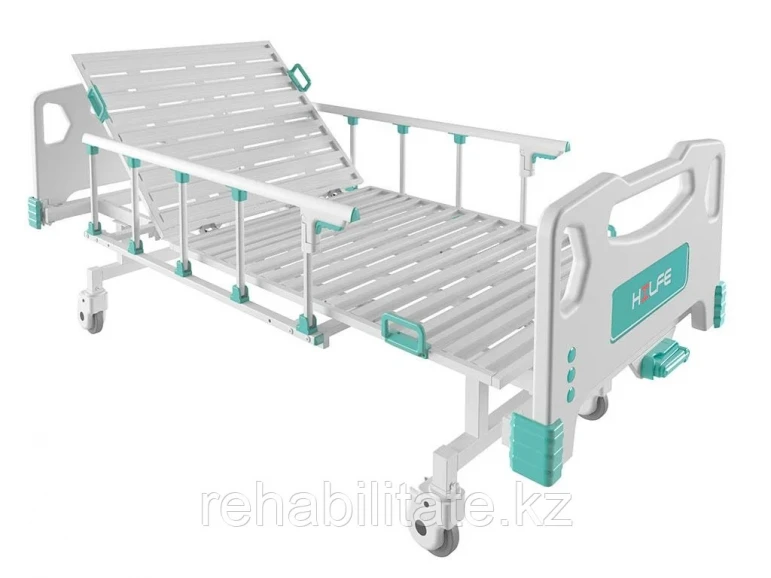

ID1507en: General hospital bed KM-02

The TATRA LIGHT I medical bed is a modern 5—function device with an electric drive, conforming to the international standard EN 60601-2-52. It is designed for comfortable and effective patient care in medical institutions, combining high standards of safety, hygiene and ergonomics.

The main advantages of the bed frame are made of profile steel pipes coated with white polymer-powder enamel, which ensures the strength and durability of the structure. The bed is made of a two-layer volumetrically molded plastic composite compatible with X-ray equipment (C-arc). The bed surfaces are as smooth as possible, without protruding fasteners — this simplifies regular disinfection and reduces the risk of contamination.

Ergonomics and safety Special attention is paid to the patient's positioning: the ergonomic articulation of the dorsal and hip panels with SLIDE EXPAND technology prevents pinching of the sacrum and disruption of blood flow. The side guards are made of volumetrically molded plastic with shock absorbers and are easy to fold, ensuring safety and convenience during maintenance.

Control and functions The bed is equipped with four German-made autonomous electric actuators (DeWert), which allow you to adjust the height of the bed, the inclination of the dorsal and leg sections, including a unique adjustment of the calf section (up to 40 °) and the femoral section (up to 25°). The control panel with a "telephone" wire can be hung on either side of the bed for the convenience of the patient and staff.

Additional features:

- CPR emergency lowering mechanism

- Therapeutic arc with two mounting holes

- Infusion stand with four corner brackets

- Four-section foam side guards with integrated handles

- The "cardio chair" function, achieved by combining anti-Trendelenburg bends and lifting sections

- Wheels with a diameter of 125 mm with rubber coating and individual brakes

Technical specifications:

- Bed dimensions: 2175×1020 mm

- Bed size: 1950×890 mm

- Maximum load: up to 230 kg

- The bed height is adjustable in the range of 480-780 mm

- The angle of inclination of the dorsal section: up to 70°

- Trendelenburg/Antitrendelenburg: ±16°

- Bed weight: 114 kg

- Warranty: 24 months

The TATRA LIGHT I bed is a high—tech medical equipment that combines comfort, safety and convenience of patient care, providing reliable support in medical institutions.

The LIFT UP functional bed with electric verticalizer is an innovative solution for the comprehensive rehabilitation of patients with severe disorders of the musculoskeletal system and central nervous system. It is designed to restore mobility, improve overall condition and facilitate care.

Effortless verticalization One of the key functions of the bed is the electric verticizer. It allows you to smoothly and safely transfer a patient from a horizontal position to a vertical one, which is especially important when recovering from stroke, spinal cord injuries, cerebral palsy, muscular dystrophy and other serious conditions. Verticalization activates the work of internal organs, adapts the cardiovascular system to stress and prevents stagnation.

Extensive care options LIFT UP is equipped with an inversion system, which facilitates the care of bedridden patients, reduces the risk of pressure sores and simplifies the change of bed linen. The fully electric toilet device is integrated into the bed, providing patient hygiene without the need to move. An additional advantage is the cardio chair function, which allows you to take a semi—sitting position.

Comfort and safety The design provides five electric actuators for precise position adjustment, folding side guards, reliable brakes on all wheels and wide Velcro straps for soft body fixation. The set includes a comfortable mattress that matches the shape of the bed, as well as a height-adjustable table that can be used even in an upright position.

Technical specifications:

- Bed dimensions: 2150 x 1250 mm

- Bed size: 2050 x 900 mm

- Maximum load: up to 200 kg

- Control: fully electric

- Flip function: present

- Cardio chair function: partial

- Toilet device: built-in, with electric drive

- Bed: steel slats

- Mattress: included in the package

- Side guards: folding

- Table and infusion stand: included

- Pull-up bar: included

- A hair wash tub: available as an option

The LIFT UP bed is a reliable assistant in the recovery of serious patients, allowing them to regain independence and improve their quality of life.

The electric medical bed is designed to provide maximum patient comfort and convenience for the caring staff. Thanks to its modern design and homely appearance, it easily fits into the apartment environment and creates a favorable psychological atmosphere for the whole family.

Swivel chair and electric control The main advantage of the model is the possibility of transforming the bed into a swivel chair with a negative tilt. This makes it much easier for the patient to get out of bed without straining his legs, especially with weakened muscle activity. The control is carried out using a remote control on a flexible cord that can be fixed on either side of the bed. The patient can independently change body positions and, if necessary, leave the bed.

Functionality and comfort The electric drive provides stepless adjustment of all sections of the bed. The height of the bed is also adjustable, which is especially important when caring for a person with limited mobility. The backrest and leg section rise and fall smoothly, allowing you to choose the most comfortable position.

Folding side guards and folding armrests are provided for patient safety, making it easier to "disembark" from the chair position. The set includes a pull-up bar with a double grip and an infusion stand.

Anti-decubitus mattress The mattress has a special top layer with a threaded surface, providing flexibility and anti-decubitus effect. This design reduces pressure on soft tissues, improves blood circulation and helps prevent the formation of pressure sores.

Technical specifications:

- Bed dimensions: 2180 x 1120 mm

- Bed size: 2030 x 900 mm

- Maximum load: up to 200 kg

- Type of adjustment: electric

- Cardio chair function: present

- Base: welded wire mesh

- Side guards: folding

- Mattress: included in the package

- Infusion stand and pull-up bar: included

-Options: table, hair washing tub

- Brakes: individual on each wheel

The bed is ideal for hospitals and home care, making everyday tasks easier and providing the patient with comfort and safety.

The TERNA medical bed is a multifunctional and aesthetically appealing solution for patient care at home or in inpatient facilities. Thanks to the electric control system, the bed provides precise adjustment of all sections, while maintaining an appearance similar to ordinary home furniture.

The main feature of this model is a four—section orthopedic bed made of light metal slats covered with brown enamel. It not only provides reliable ventilation, but also promotes even weight distribution, creating an additional orthopedic effect. The height of the bed is adjustable from 390 to 800 mm, which allows the bed to be placed in a therapeutic "cardio seat" position, which is especially important for cardiac diseases and during the recovery period after a heart attack.

The TERNA bed is equipped with four independent electric actuators that adjust the height, angle of inclination of the dorsal, leg and hip sections, as well as the Trendelenburg function./The Antitrendelenburg. All functions are controlled using a convenient remote control. Due to this, the patient can independently choose the most comfortable position for rest or wakefulness.

The frame is made of durable profiled steel pipes, painted in polymer-powder enamel of "homemade" brown color. The headboards are made of natural beech, bolted and equipped with concealed rails for aluminum side rails. This design makes the bed not only safe, but also visually appealing.

The model also includes self-aligning wheels with a diameter of 125 mm, two of which are equipped with locking brakes. Additionally, a therapeutic monkey pool arc with an adjustable handle is provided, as well as the possibility of retrofitting with a table, mattress, infusion stand and a shampoo tub.

Specifications: Bed size — 2160×1020 mm, Bed size — 1900×900 mm, Maximum load — up to 180 kg.

The TERNA bed perfectly combines medical functionality, comfort and design, fitting into any home interior and providing high-quality care.

The MET REALTA functional electric medical bed is a modern solution for the care of bedridden patients and people with reduced mobility. Thanks to full electrification, all functions are controlled using a remote control, including height adjustment, bed sections, turning the patient over and operating the toilet device. Five independent electric drives are installed to ensure smooth and silent operation.

The bed is equipped with an electric toilet device and the function of turning the patient over, which facilitates care and increases comfort. The unique shape of the head section with “ears” allows you to use the bed as a full-fledged armchair, comfortably relax and even sleep in a sitting position. In the cardio chair position, the patient can stay awake in the most comfortable position.

The side folding guards serve as armrests, and the footrest can be easily removed, providing a free exit from the bed. For care and comfort, the set includes a bedside table made of ABS plastic, a pull-up bar (trauma arch) and a shampoo tub (as a gift). An anti-decubitus tubular mattress and a set of bed linen (optional) are also available.

The MET REALTA bed is an improved analogue of the MET REVOLUTION and DB-11A models, characterized by increased ergonomics and structural stability. It has self-aligning wheels with brakes that ensure maneuverability and safety when moving. The bed is equipped with two headboard options: semicircular (by default) and rectangular with a slot (on request).

Technical specifications:

Bed dimensions: 2010×970 mm

Bed size: 1920×900 mm

Maximum load: up to 200 kg

Section and height adjustment: electric drive

Electric toilet: built-in

Base: steel

Side guards: folding

Functions: Cardio chair, flip

Included: mattress, barbell, table, tub, infusion stand

Back color: dark

Warranty: 12 months

Free shipping and assembly are possible in a number of regions of Kazakhstan. Please check the details with our managers when placing an order.
