ID1506en: Medical bed functional mechanical "Armed" RS 105B

Functional mechanical medical bed "Reinforced" RS 105B

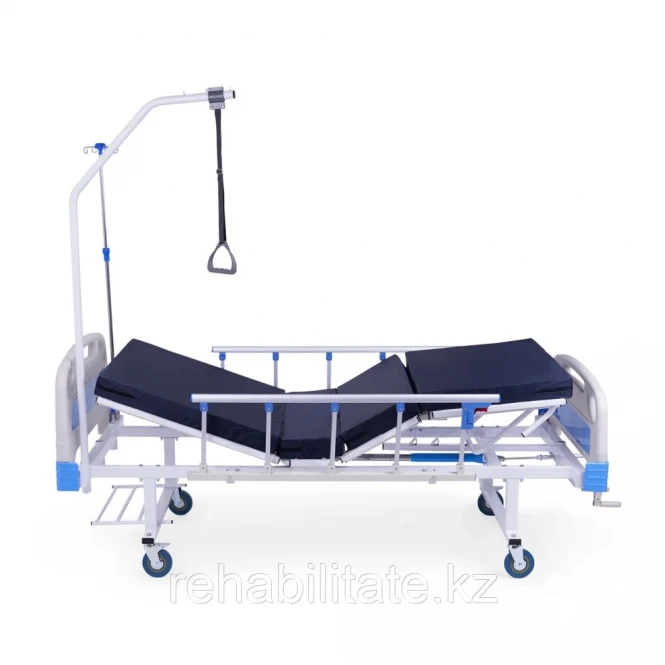

The RS 105B Reinforced functional bed is designed to effectively care for bedridden patients and create the most comfortable conditions both in hospitals and at home. The robust mechanical design and thoughtful functions ensure convenience for both the patient and the medical staff.

Construction and materials:

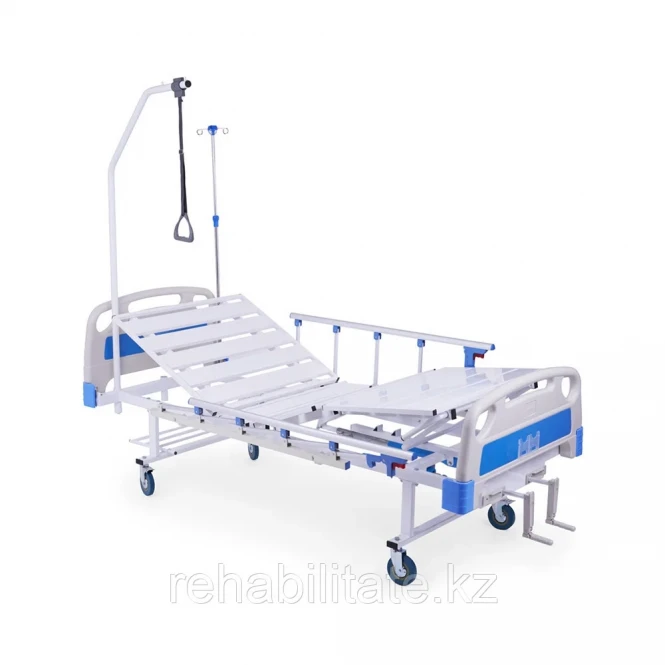

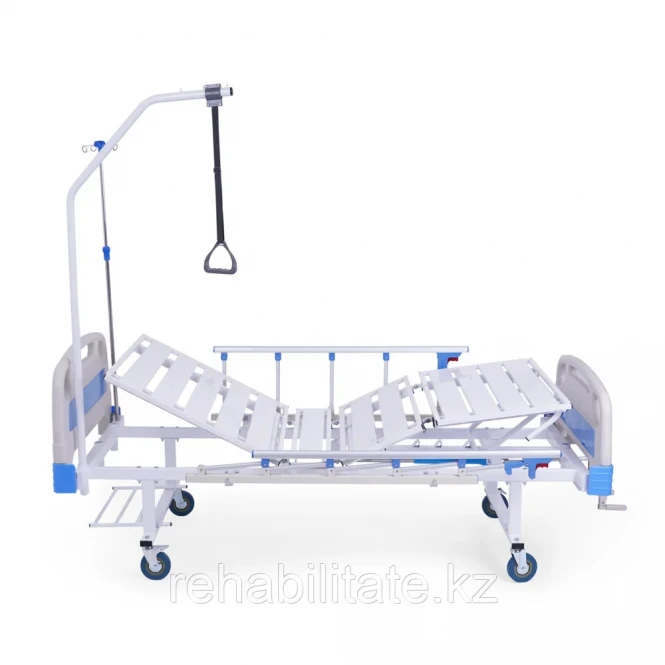

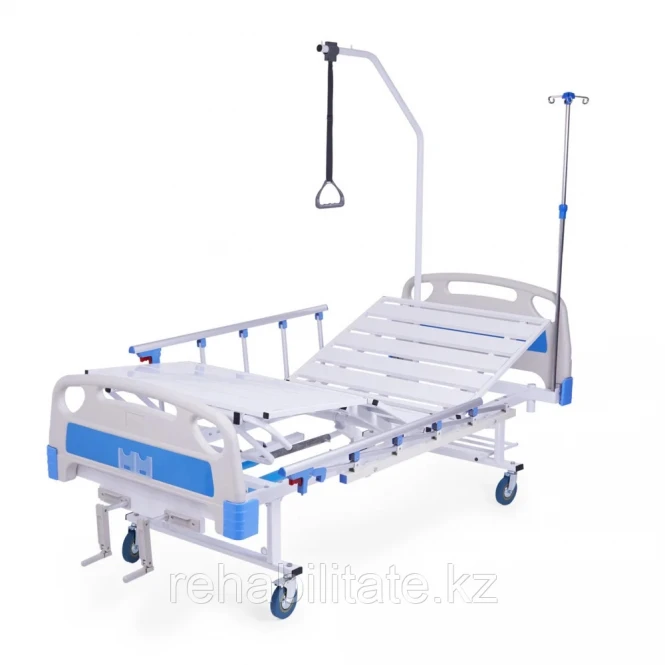

The bed is a 4-section model with a mechanical screw drive that regulates the angle of inclination of the back and leg sections. The bed is made of metal slats, providing durability and ventilation. The base is made of profile steel pipes coated with white polymer-powder enamel, resistant to impact and corrosion. The weight of the bed is 55 kg, the weight in the package is 80 kg.

Dimensions and parameters:

The total dimensions of the bed are 2020×950 mm, the size of the bed is 1880×900 mm, the height from the floor is 480 mm. The bed can withstand a load of up to 250 kg. The angle of inclination of the femoral section is adjustable from 0 to 35 °, the calf — from 0 to 20 °.

Convenience and safety:

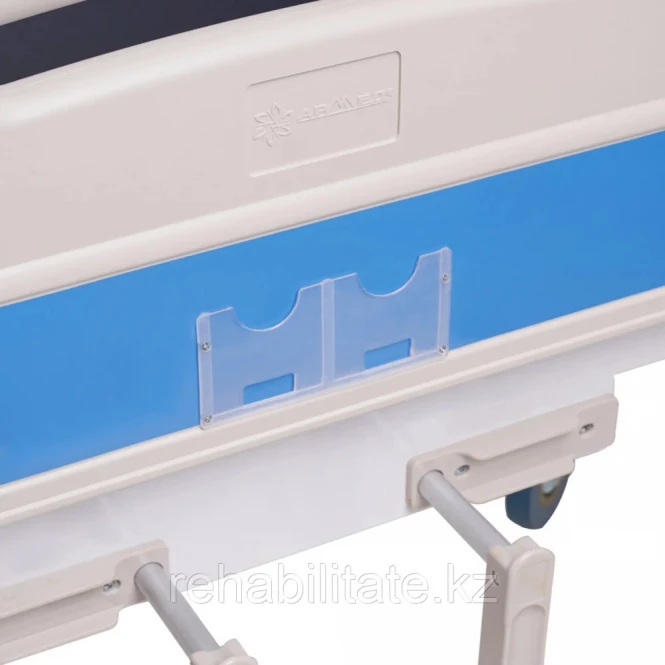

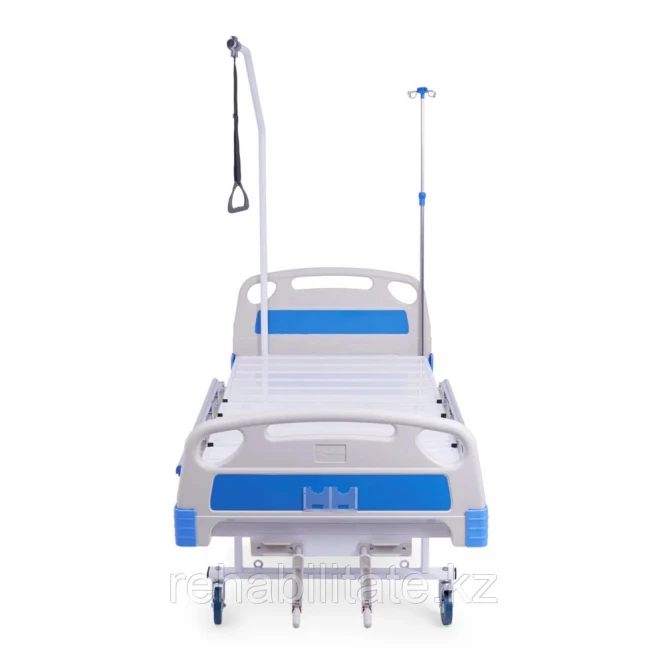

The backs of the head and legs are made of durable ABS plastic, removable and equipped with comfortable handles. The inserts on the backs and the protective corner bumpers are painted blue, which gives the bed a modern look and increases safety.

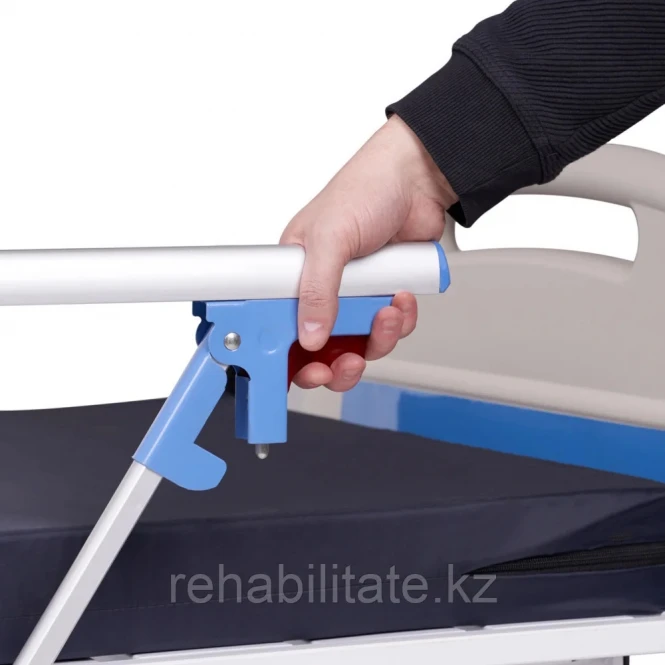

The folding aluminum side guards are easy to lower, providing easy access to the patient. The position of the bed is controlled by means of retractable mechanical regulators located in the foot part, which simplifies adjustment and eliminates unnecessary effort (no more than 3 kg with a patient weight of up to 100 kg).

Mobility and fixation:

The bed is mounted on four self-aligning steel wheels with a rubber coating with a diameter of 125 mm. All wheels are equipped with individual locking brakes for reliable stopping on any surface.

Equipment:

The price of the bed includes:

- orthopedic mattress,

- folding side guards (2 pcs.),

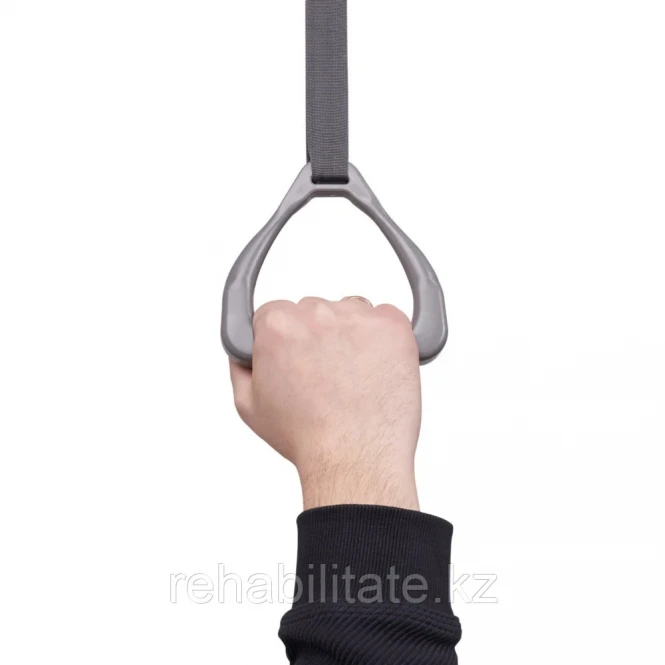

- pull-up barbell,

- infusion stand.

Additionally, you can install a bedside table (optional).

Features:

The model does not have the functions of height adjustment, patient rotation, cardio chair mode, Anti-Trendelenburg function and built-in sanitary device. This makes the bed simple and affordable to use, without unnecessary elements.

The warranty is 12 months. The country of manufacture is Russia.

The RS 105B Reinforced bed combines reliability, comfort and practicality for effective patient care.
