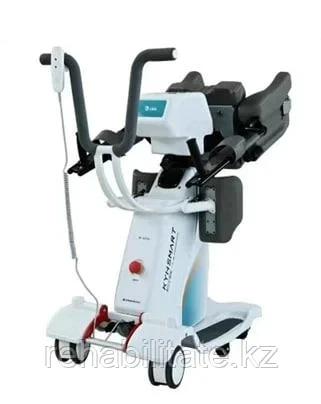

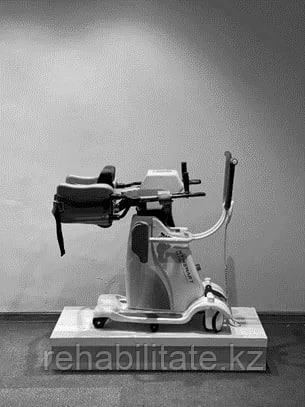

ID1529en: KYHSMART Wheelchair Lift

The MET ATLANT (electric) wheelchair is a modern and convenient solution for caring for patients with limited mobility at home, in clinics, hospices and rehabilitation centers. Its robust design and thoughtful ergonomics make it an indispensable assistant for relatives, nurses and medical staff.

Description:

The lift is mounted on a sturdy folding metal frame, which ensures easy storage and transportation. Thanks to the compact front wheel bearings, which are only 115 mm high, the device easily slides under furniture with low ground clearance, such as beds, armchairs or bathtubs. The adjustable width of the supports (from 640 to 880 mm) ensures excellent stability and maneuverability even in confined spaces. The lift is equipped with an almost silent electric drive with a capacity of 6,000 Newtons, designed for a user weighing up to 150 kg. The package already includes a universal suspension and an adjustable boom. This makes the device ready for use immediately after installation, without the need for additional purchases. For additional safety, an emergency stop button and a lowering function are provided in case of disconnection of the main power supply (via an emergency battery). There is a built—in charge level indicator and the ability to block access to the control - convenient in institutions with a large number of patients.

Technical specifications:

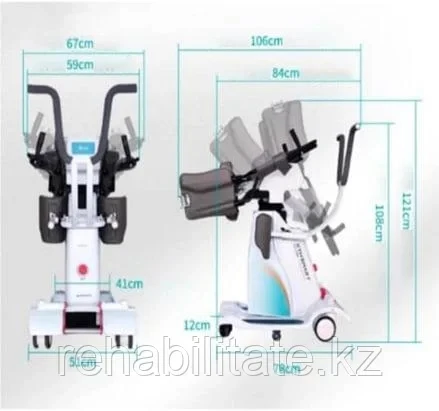

• Dimensions in working condition (L×H×W): 1150×1200-1900×640-880 mm
• Height of the handles for the assistant: 1140 mm
• Support width (max): 850 mm
• Device weight: 43 kg
• Maximum user weight: 150 kg
• Frame Material: Steel
• Drive: electric, 24V
• Mains power: 220V 50 Hz
• Emergency battery availability: yes
• Function lock and charge indicator: yes
• Production: China




  Advantages:

  • Easy assembly and folding without tools
  • Universal suspension included
  • Robust steel construction
  • Silent and powerful electric drive
  • The ability to work in case of power outage
  • Suitable for home and institutions




    The MET ATLANT electric bedside lift is the optimal combination of safety, comfort and accessibility, providing high—quality care and reducing the physical burden on assistants.

The IDEAL X1 universal crawler stair lift is a reliable solution for the safe and comfortable transportation of people in wheelchairs up stairs. The device is compatible with most standard hand-operated chairs, and if necessary, it can be used with an additional platform for non-standard and electric models.

The lift is ideal for use in apartment building entrances, theaters, libraries, educational institutions, private homes and any places where there is a need to climb stairs. It is characterized by high maneuverability, smooth running, reliable design and a well-thought-out safety system.

Main Features:

The dimensions in the working position are 650×950 × 1380 mm. When folded, the case occupies only 440×360×1080 mm, which makes the device convenient for storage and transportation. The total weight is 47 kg, including batteries. The load capacity is up to 160 kg, and the autonomous charge is enough to lift up to 23 floors. The lift operates at a speed of 3 to 7 meters per minute and is capable of climbing stairs with a slope of up to 35%. The device is equipped with a 350-watt electric motor, is powered by a rechargeable battery (2X12V, 12 Ah) and is fully charged in 4.5 hours.

Features of operation:

The lift is equipped with speed control, a charge indicator on the steering wheel, folding supports, a hatch for access to batteries, a smooth start and braking system. There are controls such as an emergency button, a power switch, an emergency release button, as well as an access key to protect against unauthorized use.

The security system includes:

Seat belt, electronic control of the permissible tilt angle and load, automatic braking when the engine is turned off, as well as emergency control buttons.

Additional options:

A universal platform for non-standard seats, a removable additional battery pack for replacement without stopping operation, as well as a lithium battery with an increased power reserve and reduced weight.

IDEAL X1 is a reliable choice for institutions and individuals who care about an affordable environment and mobility. IP "Nadezhda" offers this lift with full equipment, professional advice and fast delivery throughout Kazakhstan.

Compact and reliable lift for installation in medical and sanitary facilities

The lifting device is made of durable stainless steel and is designed for safe vertical transportation of users with limited mobility. The design can withstand a load of up to 140 kg, which makes it versatile for most patients.

With a lowering depth of up to 1100 mm and a lifting height of up to 590 mm from the base, the lift provides convenient and safe access to baths, shower areas, and can also be used to move in rehabilitation and domestic conditions.

The device is secured with chemical anchors with a stud, which guarantees stability and durability of operation even with intensive use. The 200×200 mm mounting plate simplifies installation and is suitable for most standard bases.

The dimensions of the lift (1720 × 590 × 2095 mm) make it possible to use it effectively even in rooms with limited space, and the weight of the structure of 36.5 kg ensures stability without compromising mobility. The coating is made in classic white (RAL 9003) by powder coating, which provides corrosion protection and an aesthetic appearance.

Functional features:

- Material: stainless steel

- Load capacity: up to 140 kg

- Lowering depth: up to 1100 mm

- Lifting height: up to 590 mm from the base level

- Mounting plate size: 200×200 mm

- Secure fastening: chemical anchors with a stud

- Coating color: white (RAL 9003)

- Dimensions: 1720 × 590 × 2095 mm

- Product weight: 36.5 kg

The lift is a convenient and safe solution for caring for people with limited mobility in medical institutions, sanatoriums or home care.

A pool lift is a reliable solution for transporting people with limited mobility.

The specialized lifting device is designed for safe and smooth transportation of people with limited mobility in and out of the water. It is suitable for use in swimming pools, sanatoriums, rehabilitation centers and other medical institutions.

The structure is made of corrosion-resistant stainless steel and coated with white powder paint (RAL 9003), which guarantees durability even in constant contact with moisture. The lift can withstand a load of up to 140 kg and is adapted to a variety of operating scenarios.

The maximum lowering depth of up to 1100 mm allows for a comfortable descent into the water, and the lifting height from the base to 590 mm provides a convenient exit. The structure is secured with chemical anchors with a stud, which provides increased stability and safety.

The size of the mounting plate is 200 × 200 mm, so the installation of the lift is simple and does not require complex preparation of the base.

Technical specifications:

- Load capacity: up to 140 kg

- Material: stainless steel

- Coating: powder coating (RAL 9003, white)

- Maximum lowering depth: up to 1100 mm

- Lifting height from the base: up to 590 mm

- Mounting plate size: 200×200 mm

- Overall dimensions: 1720 × 590 × 2095 mm

- Product weight: 34 kg

- Fastening: chemical anchors with a stud

Multifunctional crawler lift for stairs with high lifting capacity

This lift is designed for safe and comfortable ascent and descent of users with reduced mobility up stairs with a slope of up to 35°. The device is equipped with a powerful crawler drive and is designed to work with chairs weighing up to 155 kg.

Key technical specifications:

- The lifting capacity of the lift is at least 155 kg, which makes it possible to serve most standard wheelchairs and users.

- The motor power is at least 300 watts with a self—braking crawler drive, which ensures reliable fixation on stairs.

- The power supply is provided by an external charger with a voltage of at least 220 V.

- 12 V, 12 Ah battery, provides long-term operation and a power reserve of up to 800 steps (approximately 40 floors) at maximum load. The full charge time is up to 8 hours.

- The speed of ascent reaches 3 m/min, and descent — 8 m/min, which ensures comfortable and safe movement on the stairs.

Compact and easy to use:

The lift is compact: when assembled, its dimensions range from 1295×645× 900 mm to 1385×650×1020 mm, and the total weight is no more than 46 kg. This makes it easier to transport and store. The minimum width of the ladder for work is 750 mm. The area for 90° turns takes no more than 970×970 mm, for 180° turns — 970×1800 mm.

Security and functionality:

- At least four support pipes are provided to prevent overturning. The wheelchair is secured with screw grips for secure fixation. A plastic protective casing completely covers the upper part of the track belt and the mechanism. The fuses are placed on the outside of the case for easy replacement.

- The lift is equipped with idling wheels (at least four pieces) for safe movement on straight sections. The base of the steering column is removable, and the wiring is hidden, which increases reliability and ease of operation.

- The control panel includes forward/backward and emergency stop buttons. On the steering column there are battery charge indicators (light and sound), an access control device (key), an on/off button, as well as optical and audible tilt alarms.

- The package includes a lifting device with a base and a steering column, a headrest, a charger, a user manual and a certificate of conformity.
